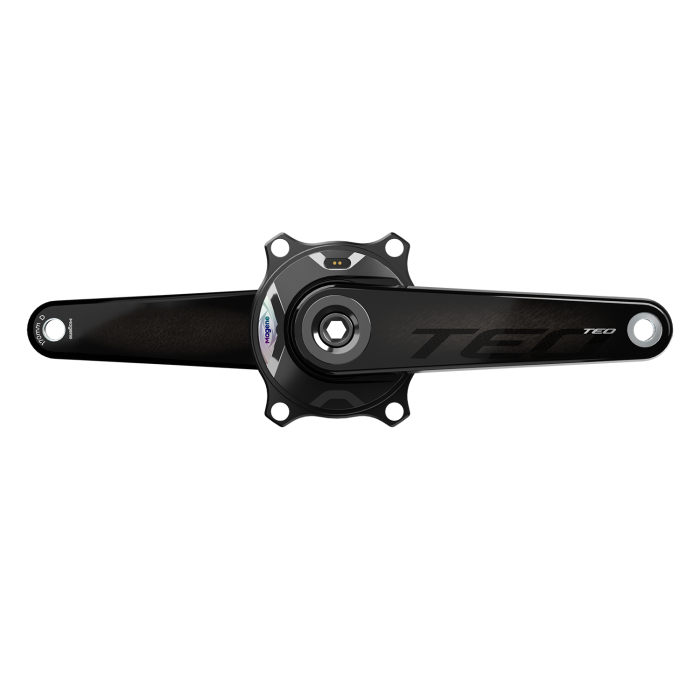

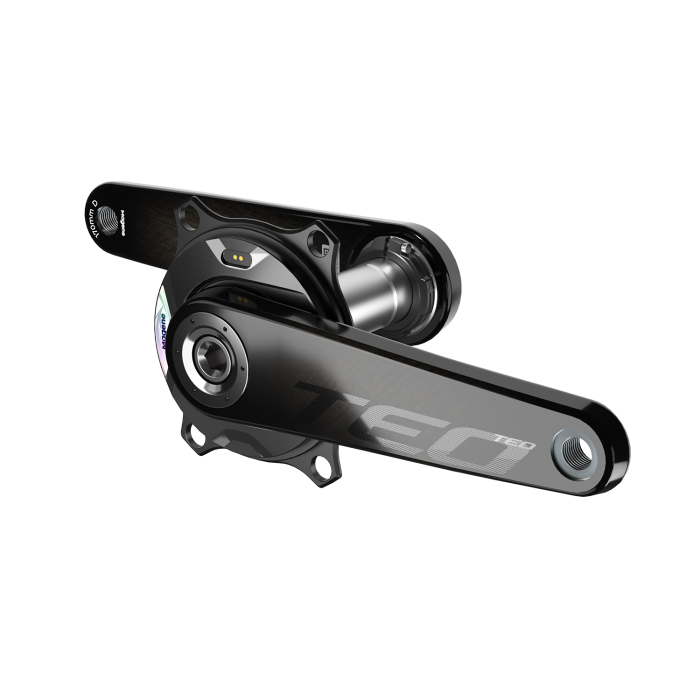

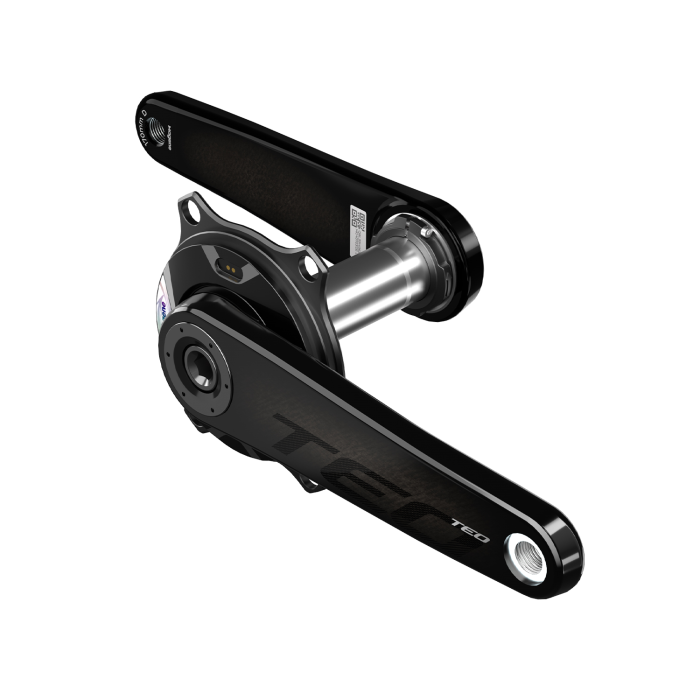

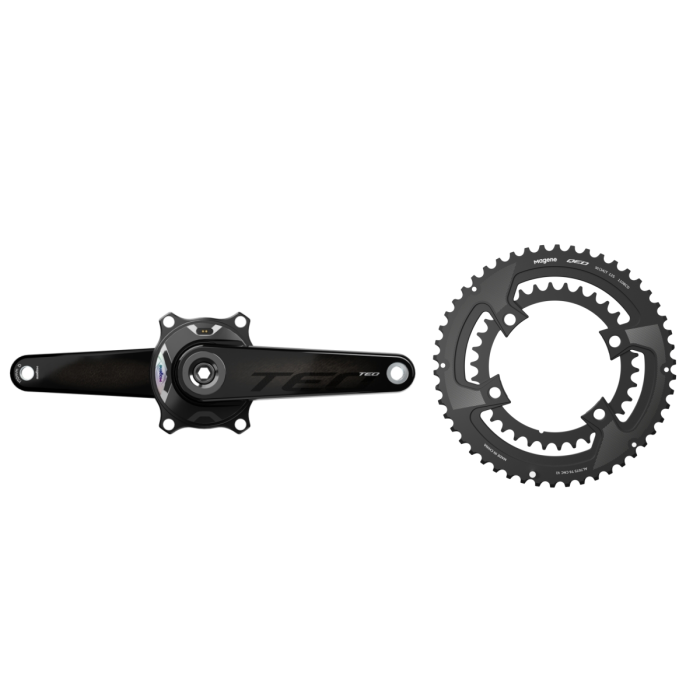

TEO P515 Power Meter Set

Name: TEO P515 Power Meter Set
Brand: Magene
SKU: 237
Price: 549 USD
Availability: InStock
Rating: 5 (2 reviews)

$549.00

Tax included

2 total ratings
Read the reviews

Born to Race

Engineered for racers, the 425g ultra-lightweight carbon crank and 7075 aluminum spider deliver ±1% power accuracy and ultra-high stiffness. With 330-hour battery life, 4 key metrics, and Bluetooth/ANT+ connectivity, it’s built to dominate.

IPX7 waterproof and 29mm spindle ensure durability, while the 110BCD-compatible design offers seamless chainring integration.

Chainring Teeth

Crank Length

Usually 14-18 working days for delivery

Compare Add to Wishlist

Overview

425g Lightweight Design, Rapid Response to Every Acceleration

Crafted from premium HI-MOD carbon fiber, the TEO carbon crank feature an innovative dual-channel high-pressure forming process, which minimizes weight to the greatest extent. With a sleek profile and an ultra-lightweight of just 325g, the crank deliver exceptional acceleration performance, helping you break away in competitive races.

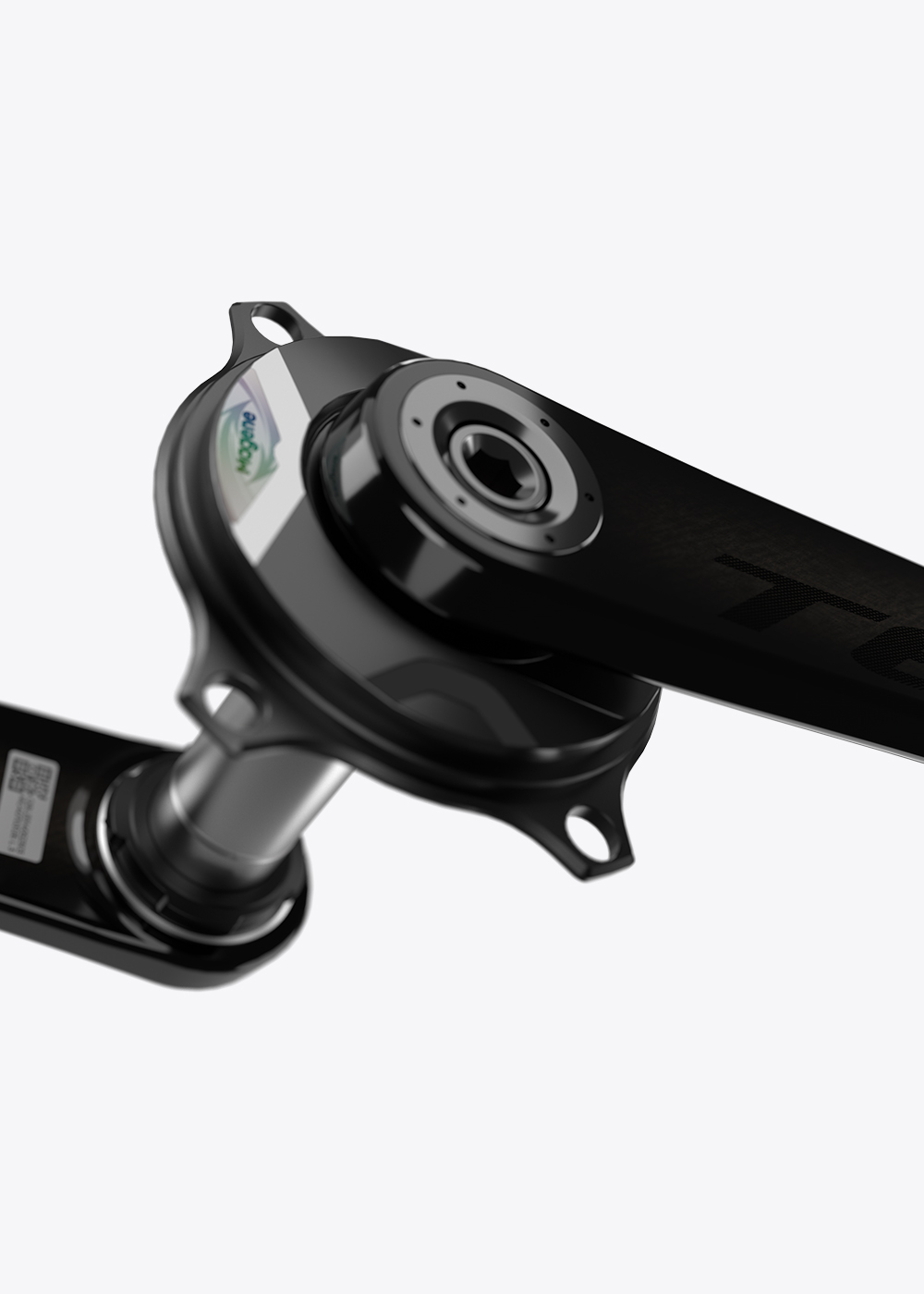

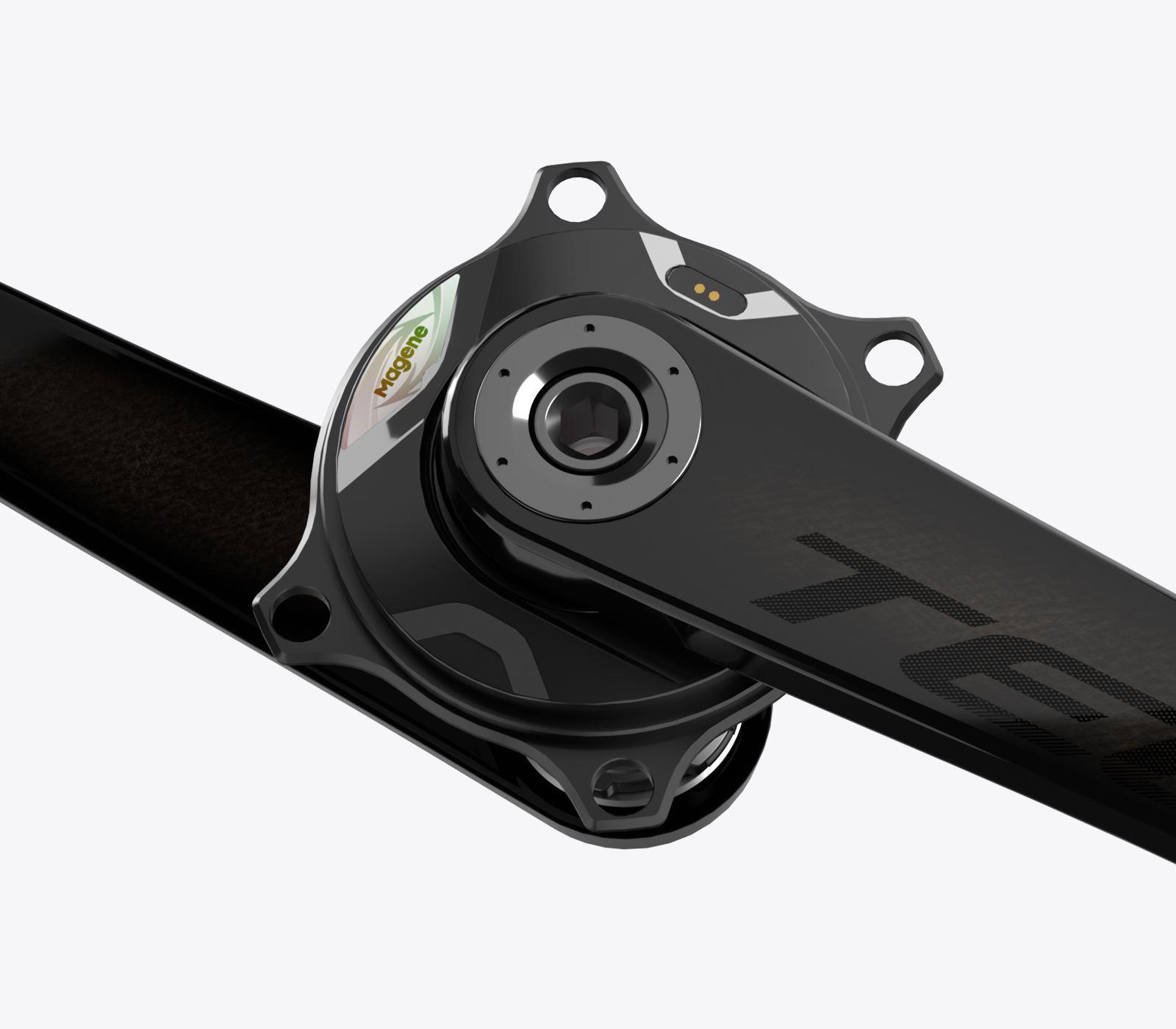

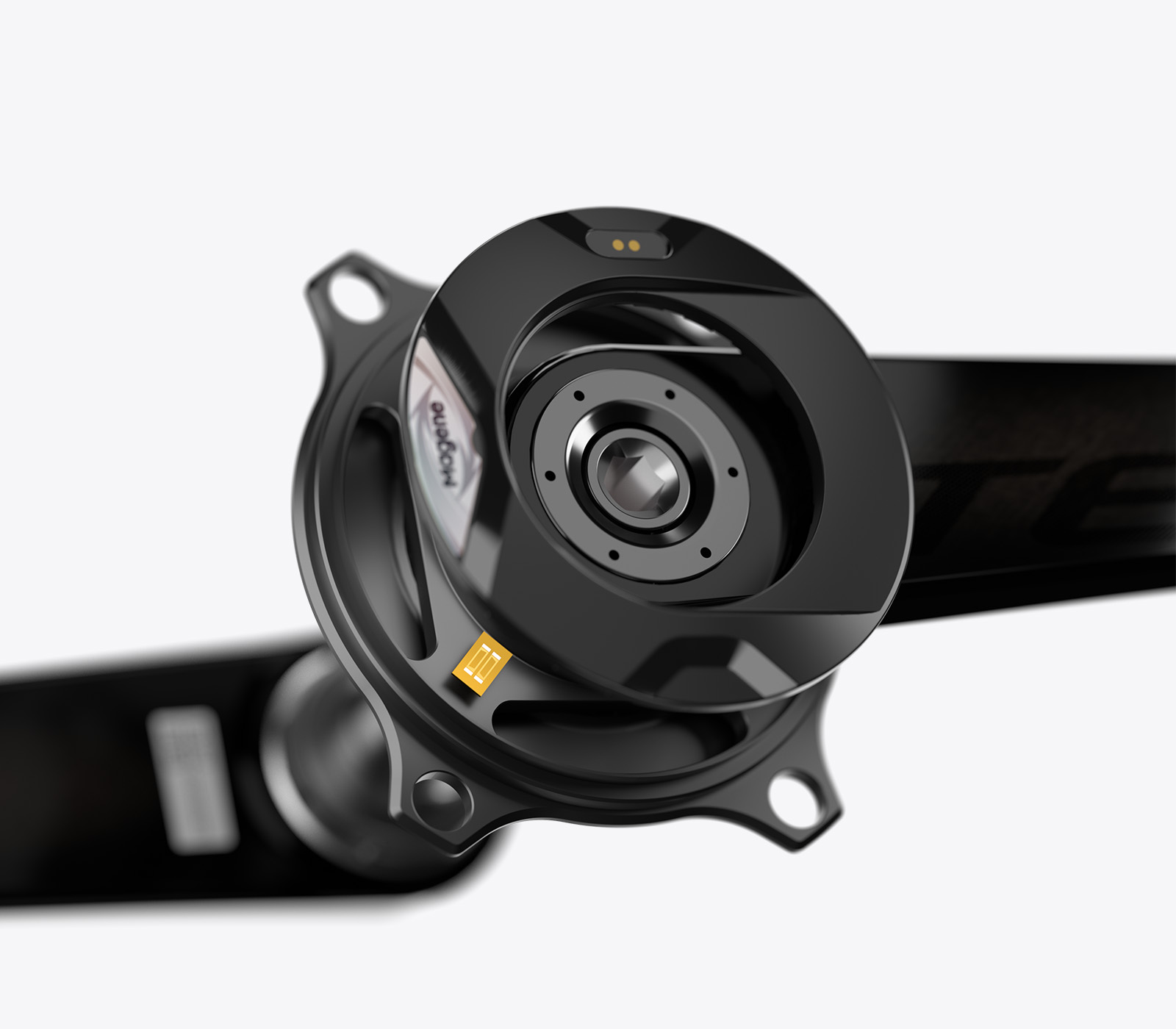

The P515 spider-based power meter is made of 7075 aircraft-grade aluminum. The selection of premium materials balances the weight while achieving great stiffness, making the power meter weighs 99g only.

*170mm crank weigh 325g and the data comes from Magene lab. 425g is the total weight after installation, including accessories.

±1% Power Accuracy, Capture Your Every Effort Accurately

P515 spider-based power meter employs high-precision strain gauges and acceleration sensors. Combined with built-in intelligent temperature compensation algorithms, it can track dynamic temperature conditions and compensate power data accordingly. It provides precise and reliable power data anytime and anywhere, even in changing environments.

Extensively tested in harsh environments with highly demanded standards, the product guarantees a ±1% power accuracy, never letting your effort in vain.

330 Hours Long Battery Life, Support Your Enduring Training Day and Night

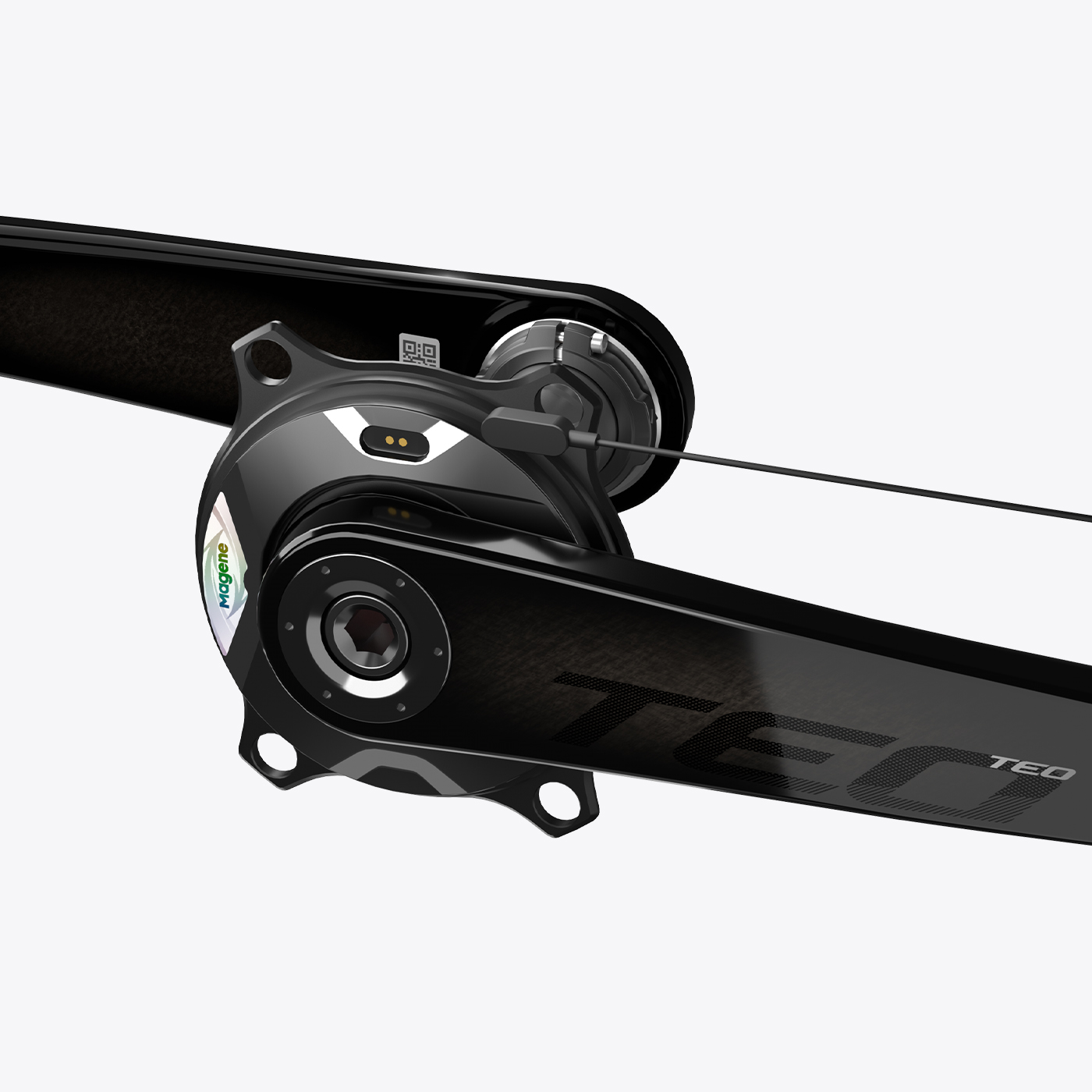

The P515 spider-based power meter applies a new circuit design to effectively improve power consumption efficiency and reduce power loss during cycling. After fully charged, it can support you for up to 330 hours of long-distance riding and training, effortlessly conquering endurance challenges.

*The battery life is tested in Magene lab and may be affected by environment and temperature.

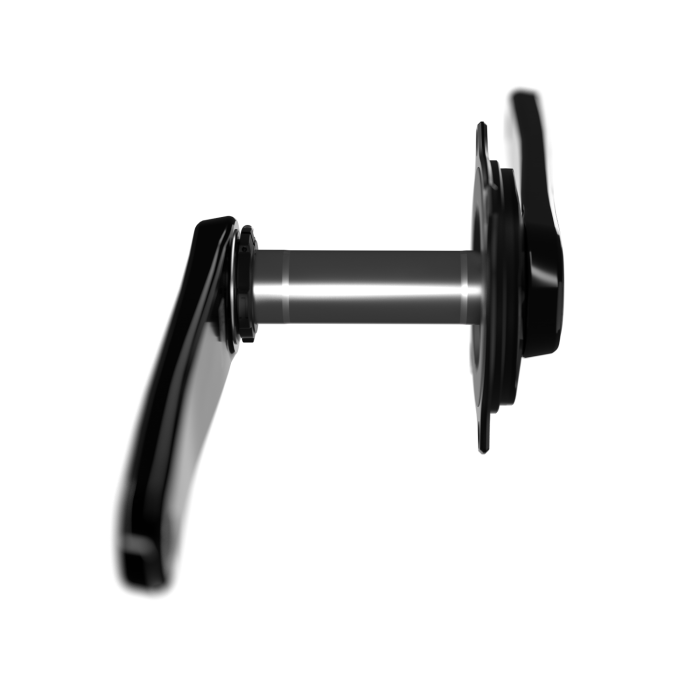

29mm Spindle, Exquisite Balance among Stiffness, Weight and Durability

Spindle is an important structure connecting the frame, and its design technology has a vital influence on the drivetrain efficiency and durability.

TEO spindle is made of 7075 ultra-light aircraft-grade aluminum. The 29mm larger diameter design of has lighter weight, better stiffness and better waterproof performance than the common 24mm steel spindle. The reliable and outstanding performance empowers racers to unleash full sprint potential and sustain peak power output.

Ultra-High Stiffness, Uncompromising Pedaling Rigidity

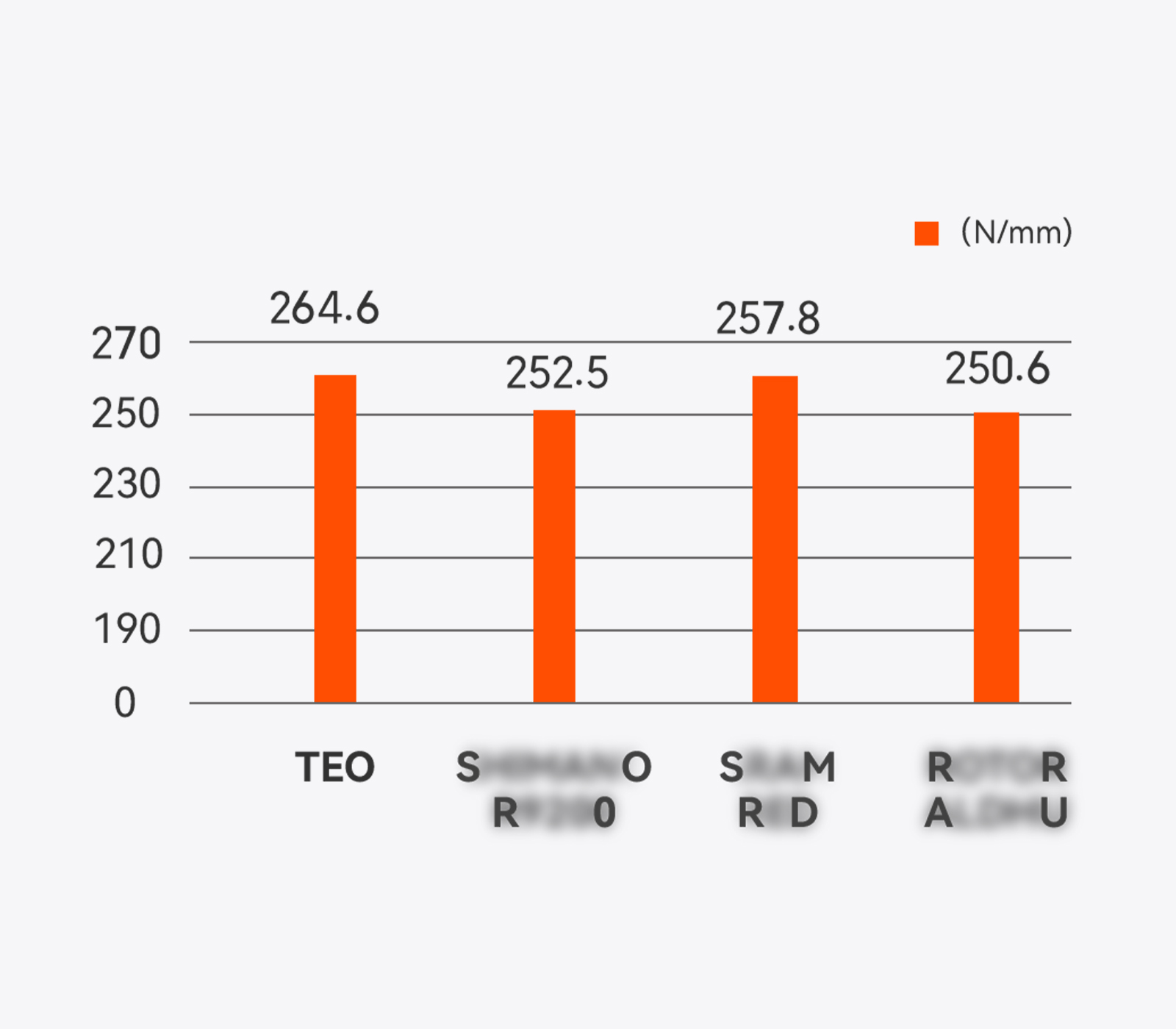

The TEO carbon crank undergo standard compression testing, with a force of 1500N (≈153 kg) applied to each pedal side (35mm position) to measure displacement.

The test proves TEO carbon crank exhibit minimal deformation, demonstrating exceptional stiffness. Rigorously tested, the TEO carbon crank maintain an outstanding stiffness-to-weight ratio without sacrificing ultra-lightweight performance. Every pedal stroke delivers unwavering confidence and your power output is never diminished.

4 Essential Cycling Data, Evaluate Your Cycling Ability Comprehensively

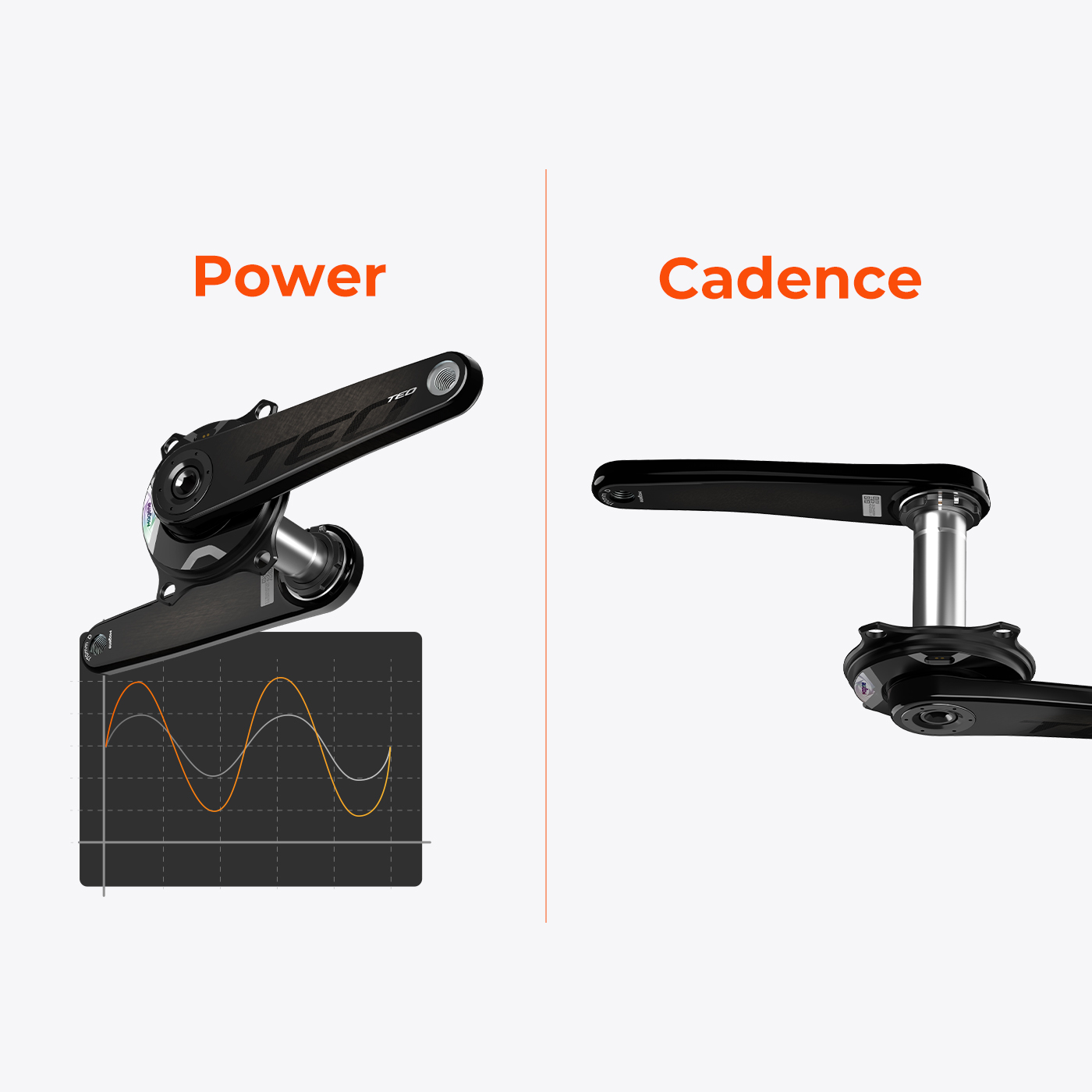

Power: Backed by years of power algorithm R&D, sensitive and reliable power measurement reaches ±1% accuracy.

Cadence: Accurate and stable cadence data measurement always keeps your rhythm in control.

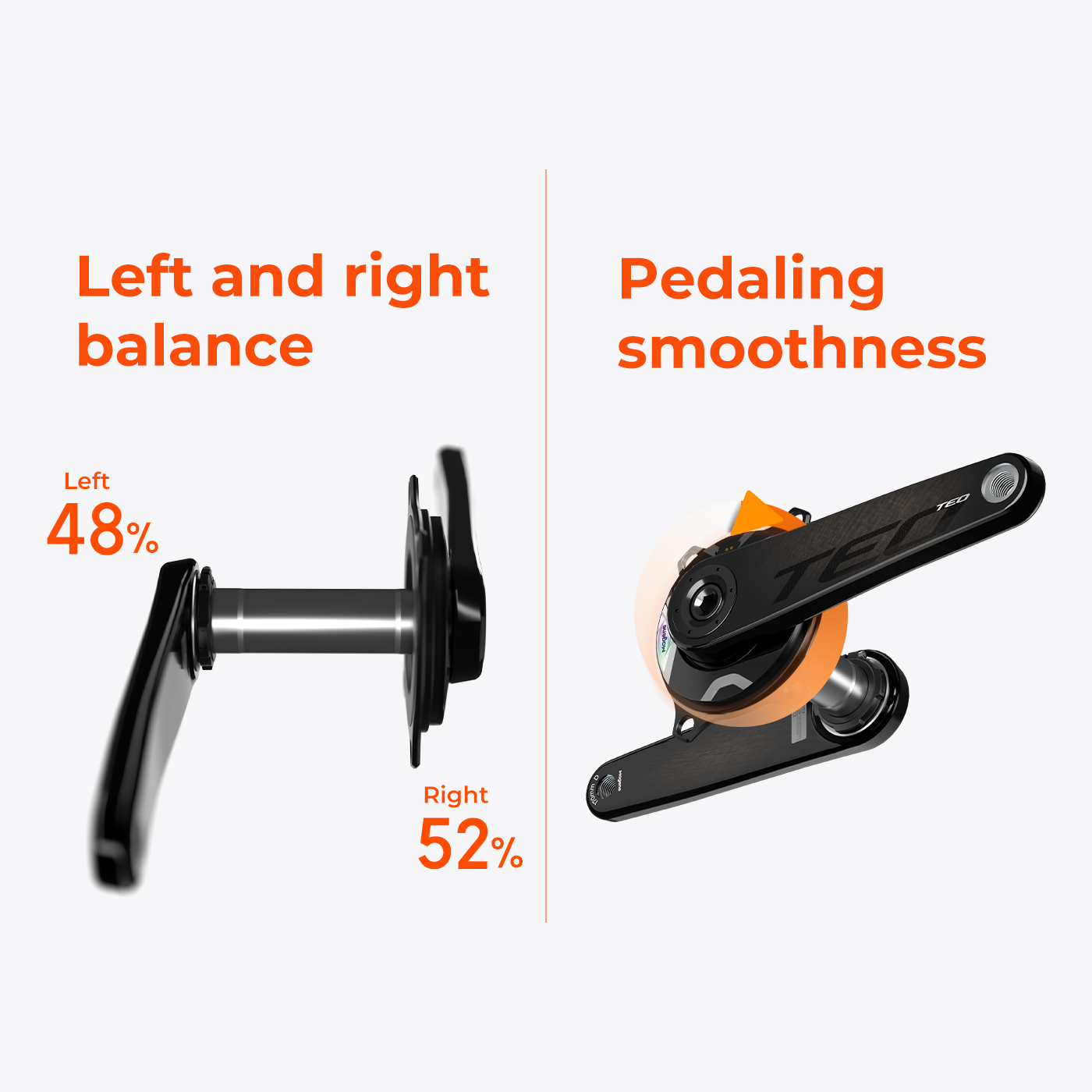

Left and right balance: Know the difference between your left leg and right leg output, so as to enhance training of the weaker leg.

Pedaling smoothness: Analyze the power data balance of your pedaling cycles.

Support Bluetooth, ANT+ Protocol, Record Data in Multiple Terminals

Compatible with various ANT+ and Bluetooth devices, can be connected to major brand bike computers such as Magene, Garmin and Bryton, etc. and training APPs such as STRAVA, Onelap, Zwift, TrainerRoad, etc. so that you can record data in multiple terminals for one workout.

Complete Power Meter cranket at One Go, Deliver the Ultimate Cycling Experience

TEO P515 power meter set includes P515 spider-based power meter and TEO carbon crank. The considerate bundle eliminates your confusion on choosing compatible components. Therefore, we could provide consistent and reliable performance and you won’t worry about interference problems caused by a third-party component. The crank and spider connects by Magene mounting standard, therefore, the P515 power meter can combine seamlessly with the whole collection of Magene crank.

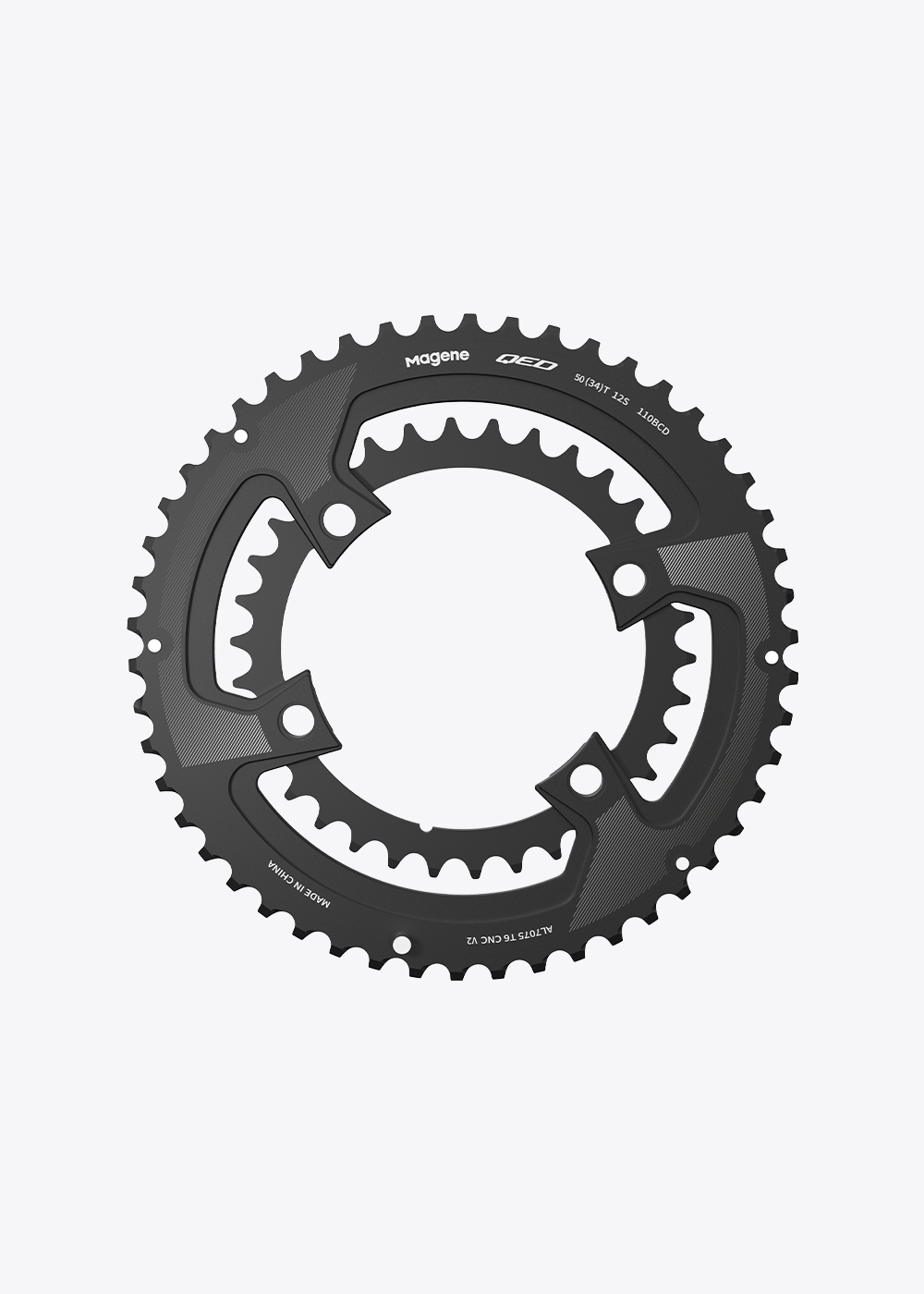

P515 spider-based power meter adopts the widely popular 110BCD four-bolt specification, which has more comprehensive compatibility. In the meantime, we provide exclusive chainring. You can build a complete TEO P515 power meter cranket in terms of your personal needs with QED split chainring. With Magene original chainring, you will enjoy the enhanced shifting efficiency and a more smooth pedaling experience.

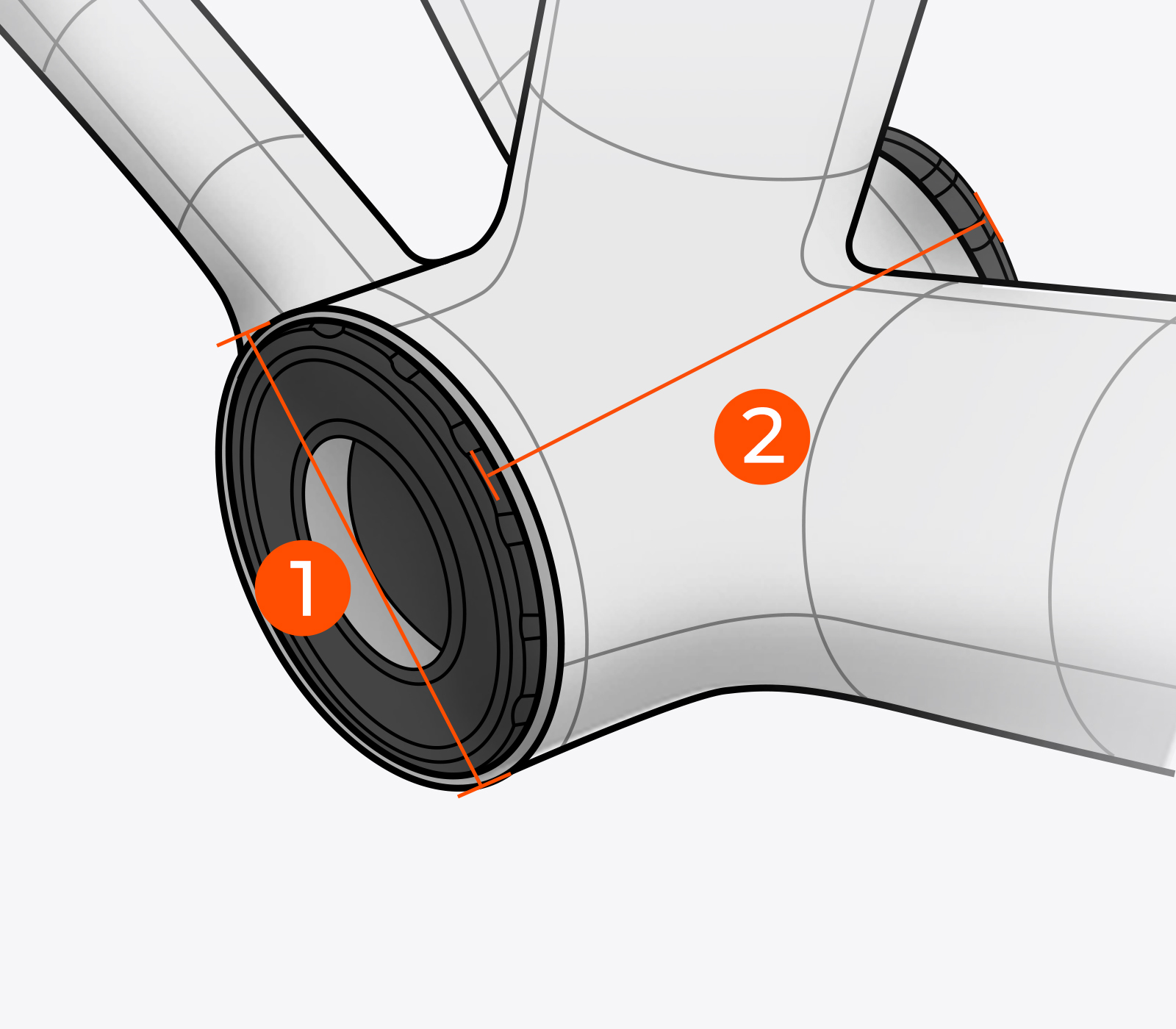

Supports Large-diameter BB

Compatible with large diameter BB including T47 and BB386.

Driving side’s external diameter of bottom bracket shell: ≤57mm

Overall bottom bracket shell’s width after installing bottom bracket: 90.5-92mm

Spec

Specifications
Model	TEO P515 Power Meter Set
Weight	425g±10g (170mm)
Crank Length	160mm, 165mm, 170mm, 172.5mm, 175mm
Power Accuracy	±1%
Spindle	29mm
Bolt	4 bolts
Chainline	44.25mm
Q-Factor	148mm
Power Range	0~2500W
Cadence Range	20~240RPM
Data Function	Power, cadence, left-right balance, pedaling smoothness
Calibration	Automatic calibration, backpedal calibration, manual calibration
Wireless Protocol	ANT+, Bluetooth
Waterproof Grade	IPX7
Working Temperature	-20~50℃
Battery Life	330 hours
Charging	Magnetic charging

In the box

P515 spider-based power meter*1
TEO carbon crank*2
Magnetic charging cable*1
Stickers*3
Quick start guide*1
Lock ring of conversion kit*1
Washer * 5

P515 spider-based power meter*1
TEO carbon crank*2
Magnetic charging cable*1
Stickers*3
Quick start guide*1
Lock ring of conversion kit*1
Smaill Chainring*1
Big Chainring*1
Set of Chainring Bolts*1
Washer * 5

qustion-and-answer

1、What are the differences between the TEO P515 power meter and the PES P515 power meter?

-The TEO P515 is a high-performance spider-style power meter featuring a full carbon fiber crank arm and precision aluminum crank jaws. Compared to the PES P515, the TEO P515 prioritizes lightweight design, rigidity, and power delivery, making it ideal for riders who value responsiveness and racing performance.

2、Who is the TEO P515 Power Meter Set best suited for?

-The TEO P515 Power Meter is built for enthusiast and competitive road cyclists who want accurate power data without sacrificing crank stiffness or aesthetics. Its carbon crank construction and optimized stiffness-to-weight ratio make it especially suitable for riders doing structured training, climbing, and racing.

3、How durable is a carbon crank power meter for everyday riding?

-The TEO P515’s carbon crank arms are engineered for high fatigue resistance and long-term durability, while the power meter itself carries an IPX7 waterproof rating. This ensures reliable performance in daily training, wet weather, and long-distance rides, without compromising accuracy or structural integrity.

4、Is the TEO P515 Power Meter Set compatible with modern road bike standards?

-Yes. The TEO P515 Power Meter Set uses a 29 mm spindle and 110 BCD 4-bolt interface, offering wide compatibility with modern road bike frames, including BB386, T47, and other large-diameter bottom bracket standards. This makes it a future-proof choice for high-end road frames.

5. What if I still have questions?

Please send us an email: officialwebsite@magene.com

Reviews (2)

2 total ratings

Review the product Product review processing policy

user M.

Excellent price, weight and performance

01/16/2026

I purchased the 165 mm crankset with a 50/34 chainring. Total weight was ~590 g which is excellent and unbeatable at this price point. Installation was easy (though I did have to swap from a 24 mm to 29 mm bottom bracket). Shifting is smooth on the Magene chainrings with a Shimano groupset. The power meter seems accurate. After my first ride I compared the power readings to my Kickr Core trainer and the P515 reading was ~4-5% higher. This makes sense given the difference in placement. It also had no issues with accuracy during power peaks. You can also easily create an offset in the Magene app to make the readings consistent between your trainer and the P515. I was a bit concerned about heel rub on these cranks but there is actually a slight offset built into them and I don't have any problems at all - at least with where I have my cleats set.

Michael S.  Verified purchase

TEO crank/Power meter

11/02/2025

200 miles in on the new set, basic install went as easy as any DUB setup, power meter setup was a little more hassle but eventually linked and started working with my Garmin 1040. The overall fit and finish are very good, very good value considering the current price. It would be nice to see a little "Q" factor designed into the crank arms to avoid heal rub as these are virtually straight. Magene, please add a 155 mm, and offer the power meter and or crank set as separate items
